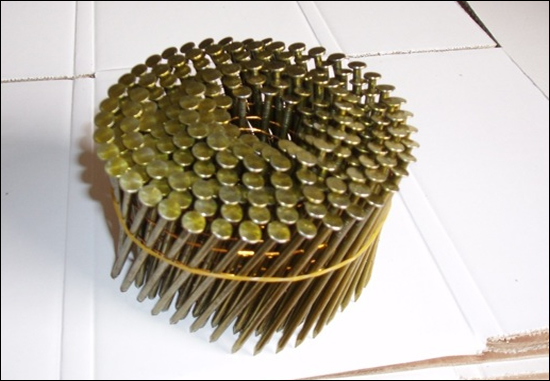

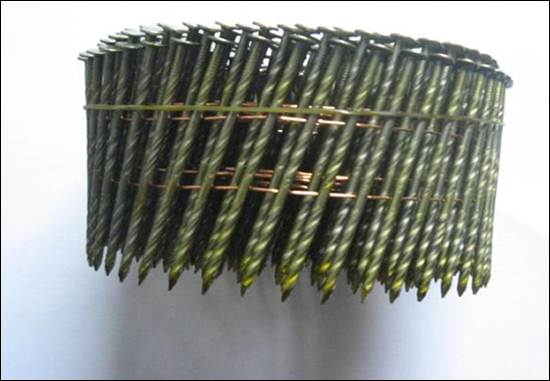

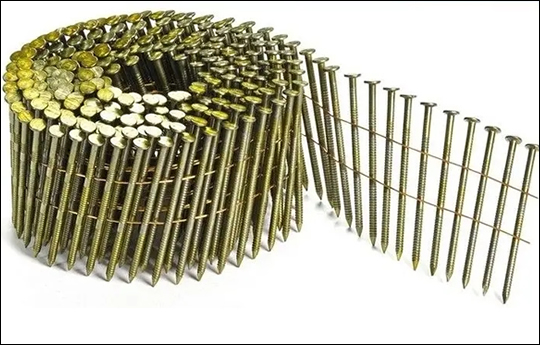

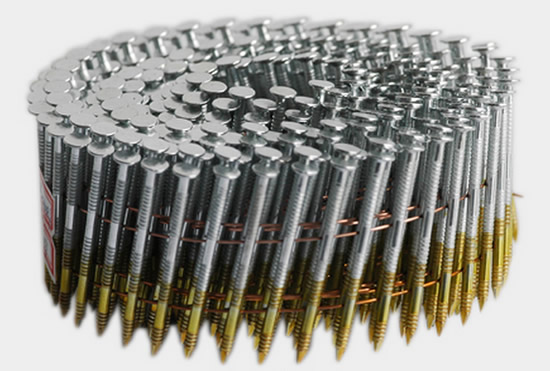

Coil Roofing Nails(Flat or Conical Collated Nails Coil)

Coil roofing nails can be smooth nails, ring nails, screw nails according to shank types. Also written as collated nails. Usually welded twice into coils at 15 or 16 angle degree for easy and continuous operation in roofing works. Collated wire nails are the preferred fasteners for most crating and pallet siding and fencing applications. Using coil nails allow the operator to hold more nails in the nailing gun and reduce reloading time.

The nails come in all forms of vinyl coated and galvanized finish, as well as deformed shanks with varying holding power such as smooth, screw and ring.

The pints can be diamond point (DP), common round point (CP) and FP (flat point). Collated steel nails can be divided into conical coils and flat coils.

We manufacture and export all kinds of Coil Roofing Nails, the surface treatments can be bright, electro galvanized, or V. C. coating.Details are as follows:

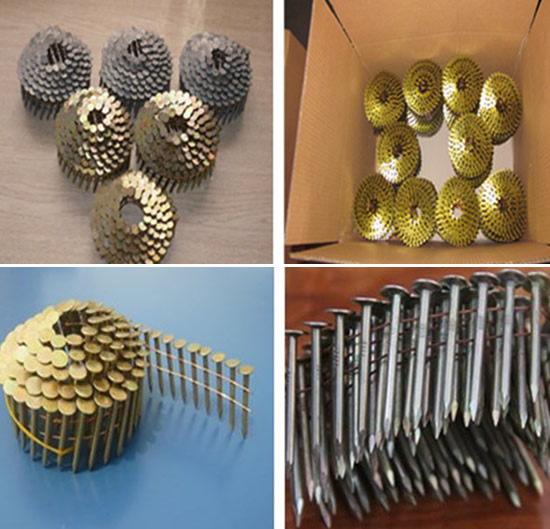

Galvanized Pallet Roofing Coil Nail Screw Coil Nails:
Length:10mm-200mm; Shank Diameter(mm):0.90-6.50.

304 Grade SS Coil Roofing Nails, Diameter: 0.120'', Length: 3/4'' to 1-3/4'', Head: 3/8''
Shank: Smooth or Ring Shank.

Galvanized Roofing Nails in Bulk, Zink coated
Dimensions
3.0x30
3.0x25
5kg or 25kg boxes

Supplied in 15 Degree Collated Coil Nails Styles:

Technical Information:
Shank types: Smooth shank and twisted shank
Application: Umbrella head ring shank HDG nails are widely suitable for the houses in tropical areas and the installation of roofing sheets.

Coil nails:
2.5x40 / 2.5x45 / 2.1x45 / 2.5x50 / 2.1x55 / 2.5x55 / 2.5x60 / 2.8x60
/ 2.5x65 / 2.5x70 / 2.8x80 / 2.8x85 / 2.8x90 / 3.1x100 / smooth ,screw and ring.

Coil roofing nail and coil common nails are supplied in zinc coating and color paint.
Product Serial No.:
Model: 1",1-1/4",1-1/2",1-3/4"
Technical Standards:
Shank Diameter(in):0.120 inch; or in metric system 3mm-4mm
Length(in):1,1-1/4,1-1/2,1-3/4
PCS/Coil:120
Package description: Coil/CTN:60
Material:Q195/Q235

Material	Surface Treatment	Size	Length Available	Shank Diam	Shank	Head Diam
Q195 / Q235	Electric Galvanized	1/2" - 3.5"	10 mm - 90 mm	3mm - 4mm	Plain / Twisted	9mm Umbrella

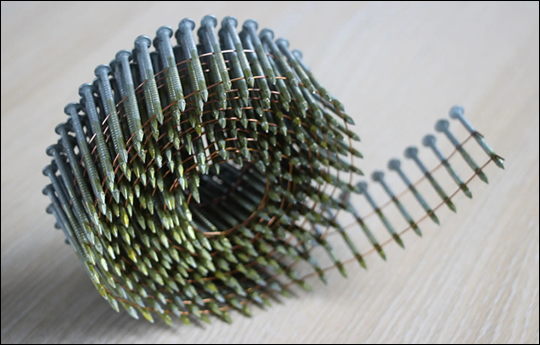

Stainless Bright Coil Nails

Roofing Nails (GOST 4030-63 or analogue)
Size, mm
3.0 x 25
3.0 x 30
3.0 x 40

Galvanized Iron Wire Coil Nails Specifications with Nails and Coils Data:

Wire Dia. (Nail length)	Shank dia.	Expansile dia.	Head dia.	Head thickness	First welding position	Second welding position	Inside Coil Dia.
2.1 ( 25 - 38 mm )	2.1 +/- 0.02 - 0.05 mm	2.1 + 0.15-0.3 mm	5.0 mm	0.8 mm	8 mm	19 mm	25 mm
2.1 ( 45 - 50 mm )	2.1 +/- 0.02 - 0.05 mm	2.1 + 0.15-0.3 mm	5.0 mm	0.8 mm	19 mm	37 mm	32 mm
2.3 x 38 mm	2.3 +/- 0.02 - 0.05 mm	2.3 + 0.15-0.3 mm	5.5 mm	0.8 mm	8 mm	19 mm	32 mm
2.2 - 2.3 ( 45 - 60mm )	2.3 +/- 0.02 - 0.05 mm	2.3 + 0.15-0.3 mm	5.5 mm	0.8 mm	19 mm	37 mm	32 mm
2.5 ( 35 - 38 mm )	2.5 +/- 0.02 - 0.05 mm	2.5 + 0.15-0.3 mm	6.0 mm	1.0 mm	8 mm	19 mm	32 mm
2.4 - 2.5 ( 50 - 75 mm )	2.5 +/- 0.02 - 0.05 mm	2.5 + 0.15-0.3 mm	6.0 mm	1.0 mm	19 mm	37 mm	32 mm
2.7 - 2.9 ( 50 - 83 mm )	2.7 +/- 0.02 - 0.05 mm	2.7 + 0.15-0.3 mm	7.1 mm	1.0-1.1 mm	19 mm	37 mm	32 mm
3.0 - 3.1 ( 80 - 90 mm )	3.0 +/- 0.02 - 0.05 mm	3.0 + 0.15-0.3 mm	7.4 mm	1.3 mm	19 mm	37 mm	32 mm
3.1 x 100 mm	3.1 +/- 0.02 - 0.05 mm	3.1 + 0.15-0.3 mm	7.4 mm	1.3 mm	19 mm	52 mm	32 mm

Coiled Nails Wire Gauge in Inch:

Wire Gauge	Length	Package (pcs/box)
.083’’	1-1/4”	16000
.083’’	1-1/2’’	16000
.083’’	1-3/4’’	16000
.083’’	2’’	12000
.090’’	1-1/2’’	12000
.090’’	1-3/4’’	12000
.090’’	2’’	9000
.090’’	2-1/4’’	9000
.099’’	1-1/2’’	12000
.099’’	1-3/4’’	9000
.099’’	2’’	9000
.099’’	2-1/4’’	9000
.099’’	2-1/2’’	9000
.105’’	1-1/2’’	7500
.105’’	2’’	7500
.105’’	2-1/4’’	7500
.105’’	2-1/2’’	7500
.105’’	2-3/4’’	5000
.113’’	2’’	5000
.113’’	2-1/4’’	5000
.113’’	2-3/8’’	5000
.113’’	2-1/2’’	5000
.113’’	2-3/4’’	5000
.113’’	3’’	5000
.113’’	3-1/4’’	4500
.120’’	2-1/2’’	5000
.120’’	2-3/4’’	5000
.120’’	3’’	4500
.120’’	3-1/4’’	4500
.120’’	3-1/2’’	4000
.131’’	2-1/2’’	4500
.131’’	3’’	4000
.131’’	3-1/4’’	4000
.131’’	3-1/2’’	4000

Roofing Coil Nails with Smooth Shanks:

Specification：	PCS/CTN：
3/4″×3.05	120×60=7200
7/8″×3.05
1″×3.05
11/4″×3.05
13/4″×3.05

Size:3/4"x11G, 1"x11G, 1- 1/4"x11G, 1-1/2"x11G, 1"x14G,
Length:19mm-45mm
Shank diameter:11G,3mm
Head diameter:5mm-8mm
Material:Iron
Finish:galvanized
Color:yellow,silver,colorful

Yellow coated screw shank pallet coils nails:

Specifications:0.083”,0.09”,0.099”,0.113”,0.120”,0.131”,0.135”

Technical standards:size: 0.083”,0.09”,0.099”,0.113”,0.120”,0.131”,0.135”

Length:1-1/4”-3”

Degree:16,15 degree

Product description: Screw shank twisted coil nails with diamont point/Without point

Finish:bright/Yellow coated/E.G/H.D.G

Shank:screw

Material:ss304 and ss316,Q195 AND Q235

Packing:300pcsx30rolls/CTN or accoring to requirement with pallets
