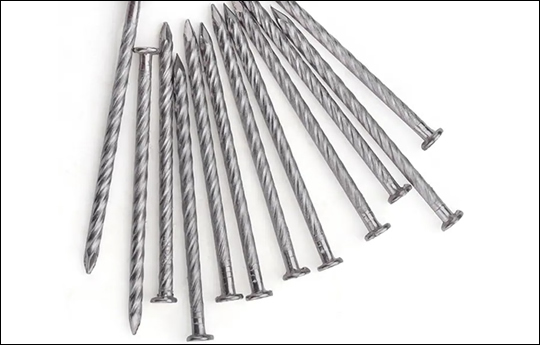

Stainless steel roofing nails enjoy the feature of corrosion resistance, acid and alkaline resistance, long service life and good properties. Made from stainless steel rod SUS304, through wire drawing, nail punching to shanks, cold heading, polishing and surface treatment to the finished nail products. For screw shanks ss nails, screw tapping processing is required. Non-rusting fasteners with sharp points for firm connecting. Stainless steel rivets and nuts are also supplied.
Stainless Steel Annular Ring nails 3.35mm x 50mm long.
SS nails with round head, supplied with 6x180cm at maximum size. Materials grade includes: 304, 316, 316L, 201
Types:
1,Stainless Steel Roofing Coil Nails
2,Ring Shank Stainless Steel Roofing Nails
3,Stainless 15 Degree Coil Roofing Nail File Steel Diamond
4,Stainless Steel Roofing Nails With Plastic Washer.
Technical Note:
Flat or checkered head, diamond point.
Shank types can be smooth shank, ring shank, screw shank, grooved shank .
Shank diameter(in):0.120
Standard:AISI ASTM
Grade:200Cu,201,304Hc,316
Head Diameter:5.0mm-9.0mm
Shank Diameter:2.0mm-4.5mm
Length:20mm-100mm(Nail length(in):1,1-1/4,1-1/2,1-3/4)
Surface Treatment:Bright
Application: In roofing and wall construction, used to connect timber pieces, and asbestos shingle, plastic tile fixing.
Packing: 25kg/ctn,40Ctns/pallet.Standard export packing or according to customers requirement.
Stainless Steel Concrete Nails:
Feature: flat head, diamond point
Length: 1"-5" (25-120mm)
Shank diameter: 2.5mm to 5.2 mm
Head diameter:3mm to10 mm
Stainless Concrete Nails Specifications:
| Length | 25mm-120mm |
| Head Diameter | 3mm-10mm |
| Shank Diameter | BWG19-BWG8(2.5mm-5.2mm) |
| Shank | Smooth Shank/ Spiral Shank |
| Point | Diamond Point/Blunter Point |
| Surface Treatment | Bright or color painted |
Stainless steel Grade to Choose for Nails Production
| SUS | Chemical Composition (%) | ||||||||
| C≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr≤ | Ni | Mo | other | |
| 304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10 | ||
| 304HC | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10 | ||
| 304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10 | ||
| 316 | 0.08 | 1.00 | 2.00 | 0.035 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| 316L | 0.03 | 1.00 | 2.00 | 0.035 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| 201CU | 0.12 | 1.00 | 7.5-10.0 | 0.045 | 0.030 | 13.5-16 | 3.5-5.5 | 0.5 | N≤0.1 |
| D668/204CU | 0.12 | 1.00 | 11.0-15.0 | 0.045 | 0.030 | 12.5-14.0 | 1.6-2.5 | 0.6 | N≤0.1 |
Ring shank stainless steel roofing nails
Material:steel
Length:1-1/4"
Type:flat head,ring shank,diamond point
Shank diameter:BWG11
Finish:stainless steel
Packing:customer's requirement.
Usage: Used to fasten asphalt shingles, felt roofing, insulation board.
Stainless Steel Diamond 15 Degree Coil Roofing Nails:
| Shank Diameter | Length | Head Diameter | Each Volume Number |
| 0.083'' | 1-1/4'' to 2'' | 3/16'' | 400PCS/COIL |
| 0.090'' | 1-1/2'' to 2-q/4'' | 1/5'' | 350PCS/COIL |
| 0.099'' | 1-3/4'' to 2-1/2'' | 0.228'' | 300PCS/COIL |
| 0.113'' | 1-1/4'' to 3'' | 1/4'' | 250PCS/COIL |
| 0.120'' | 2-3/8'' to 3-3/4'' | 9/32'' | 250PCS/COIL |
| 0.131'' | 3'' to 4'' | 9/32'' | 120PCS/COIL |
| 0.120'' | 3/4'' to 2'' | 3/8'' | 120PCS/COIL |
304 Stainless Steel Annular Ring Shank
| Length | Gauge | Shank Diam. |
Head Diam. |
Approx Count per Pound |
| 1" | 10 | .134" | 3/8" | 212 |
| 1-1/4" | 10 | .134" | 3/8" | 166 |
| 1-1/2" | 10 | .134" | 3/8" | 139 |
| 1-3/4" | 10 | .134" | 3/8" | 126 |
| 2" | 10 | .134" | 3/8" | 105 |
| 2-1/2" | 10 | .134" | 3/8" | 91 |
| 3" | 10 | .134" | 3/8" | 78 |
| 1-1/4" | 11 | .120" | 11/32" | 199 |
| 1-1/2" | 11 | .120" | 11/32" | 170 |
| 1-3/4" | 11 | .120" | 11/32" | 149 |
| 2" | 11 | .120" | 11/32" | 136 |
316 Stainless Steel Annular Ring Shank
| Length | Gauge | Shank Diam. |
Head Diam. |
Approx Count per Pound |
| 1" | 10 | .134" | 3/8" | 212 |
| 1-1/4" | 10 | .134" | 3/8" | 166 |
| 1-1/2" | 10 | .134" | 3/8" | 139 |
| 1-3/4" | 10 | .134" | 3/8" | 126 |
| 2" | 10 | .134" | 3/8" | 105 |
| 2-1/2" | 10 | .134" | 3/8" | 91 |
| 3" | 10 | .134" | 3/8" | 78 |
| 1-1/4" | 11 | .120" | 11/32" | 199 |
| 1-1/2" | 11 | .120" | 11/32" | 170 |
| 1-3/4" | 11 | .120" | 11/32" | 149 |
| 2" | 11 | .120" | 11/32" | 136 |
