Concrete nails are specialty nails rather than common iron nails. It is harder, the shank is short and thick and it has excellent piecing and fixing strength. With these features, concrete nails make ideal nails and fasteners in construction, workshop and dailylife to attach wood, sheiving or any other type material to a concret or masonry surface .
We supply plain shank concrete nails, flute shank concrete nails and bamboo concrete nails in regard to the shank types.

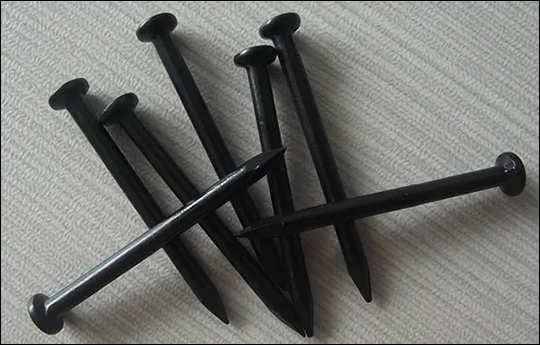

Concrete nail black
Size 1“ 1-1/2” 2“ 2-1/2” 3“ 4” 5“
Black steel concrete nails, sizes l inch to 4 inch
Concrete nails galvanized with and headless
in sizes l inch to 4 inch, cement concrete nails, other concrete nails all galvanized in sizes l-l/2 inch to4 inch, common nails in sizes l-l/2 inch to 4 inch,
galvanized or copper
Model: 13#, 16#, 20#, 25#, 30#, 35#, 40#, 50#, 60#, 70#, 80#, 90#, 100#, 130#
Standard Length:13mm-130mm
Shank Diameter:1.60mm-5.50mm

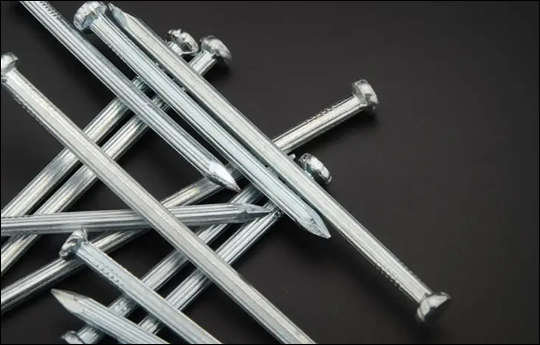

Material: Carbon Steel C40, C45, stainless steel
Surface Treatment: Bright, E.G, H D G, yellow paint, black, blue
Head: Flat Head
Shank: twisted or smooth
Point: Diamond Point.
Packing:
Black steel concrete nails must be packed one l kilogram to a display box.
Other nails are packed 25 kilogram strapped strong export cartons.
Concrete Nails Plain Shank (Light Gauge)
Packing: 1kg plastic bag pack. 25kg/ctn
25mm x 2.5mm
40mm x 2.5mm
50mm x 2.5mm
Concrete Nails Flute Shank (Heavy Gauge)
Packing: 1kg plastic bag pack. 25kg/ctn
50mm x 3.2mm
75mm x 4.2mm
100mm x 4.6mm
GI Clasp Nails for Autoclaved Aerated Concrete Blocks
Length : 6"

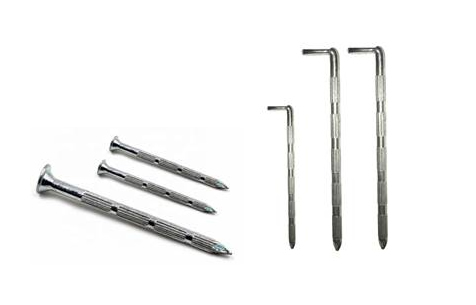

Bamboo Concrete Nail and L Angle Bamboo Concrete Nails
Dia. 2.7 3.5 4.0 4.5 Length 30 40 50 65 75 90 100
Dia. 3.0 3.5 4.0 4.5
Length 30 40 50 65 75 90 100
Inner Box.
Inner box is a color box, simple corrugated carton.
Each 0.500grs of nail pack first in a plastic bag and then put inside the inner box.
The concrete nails black i.e. 25, 30,50,70,80,90,100. sizes.
Concrete Nails: Carbon Steel Materials | ||||
Electro Galvanized | Blue Plated | |||
The Length of Nails/inch | Specification | The Number of Per Pound | Nails Length | Rod Diameter |
1 | 12BWG | 355 | 20mm | 2mm |
9BWG | 182 | 25mm | 2mm | |
1-1/4 | 12BWG | 244 | 25mm | 2.5mm |
9BWG | 145 | 30mm | 3mm | |
1-1/2 | 12BWG | 244 | 40mm | 3mm |
9BWG | 123 | 50mm | 3mm | |
2 | 12BWG | 184 | 60mm | 3.4mm |
9BWG | 96 | 70mm | 3.4mm | |
2-1/2 | 8BWG | 64 | 80mm | 3.4mm |
CONCRETE NAIL,1 1/2"
CONCRETE NAIL,4"
CONCRETE NAIL,2"
Concrete nails
diamond point , groved shank , electro-galvanized , all kinds of head.
size : from 1--5 inch.
packing : 1kg /box and 25boxes /carton.
Concrete nails, 4", made of carbon steel 10g x2 1/2" 3 part hex head self drilling
CONCRETE NAILS
With umbrella head, smooth body, twist body, mainly for building construction concrete wall.
Popular sizes:
Specifications: 8G, 9G, 10G, 11G, 12G, 13G
Length: 1"---6".
Shank Diameter: M1.2-M6.0 BWG6-16
Material : Q215 Carbon steel
Point: diamond point
Surface treatment: Polished, electro galvanized, hot-dip galvanized
Countersunk head or Flat head
Diamond Point or Needle point
Smooth Shank and Fluted shank
Surface Finishes: Electric Glvanized,Hot Dipped Galvanized, yellow, blue, black painted
